AN-122 GPS LoRa Sensor for Asset Tracking

Profile

LoRa+GPS tracker is based on standard LoRaWAN ^TM protocol for assets tracking, with built-in GPS, G-sensor, anti-tilt switch detection sensor and switching power supply module. When there is a moving for the device, you’ll get the GPS location information, as well as an automatic alarm. It is in small size with built-in rechargeable lithium battery. Easy installation makes it meet customers’ needs in different application scenarios, such as assets tracking, smart animal farming, IoT finance tracking.  learn more

 Features:

²Support LoRa RF data transmission;

²Support GPS positioning with accuracy of within 5 meters;

²Built-in G-sensor, support moving object detection

²IP66 weatherproof

² Wide working temperature range – 30 ℃ to + 80 ℃;

² Support person or object anti-theft tracking;

² Built-in anti-tilt switch detection sensor to detect illegal moving o

²Built-in rechargeable battery

²Low power consumption

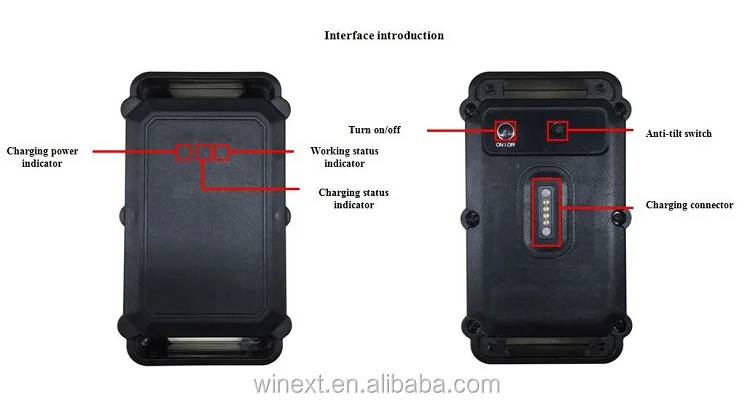

Turn on: Short press the on/off button, and about 2 seconds later, the green LED will be on, indicating the device powered on

Turn off: Press the on/off button for about 4 seconds, and green LED will be on and then off, indicating the device powered off

Charging connector: Magnetic charging

Charging power indicator: Red light

When the charging connector is connected, the light will be on, and the light will be off if not connected.

Charging status indicator: Blue light

When charging, it’ll be on; when charging completed, it’ll be off;

Working status indicator: Green light

When it flashes, that means the device is working (interval of 20 seconds/time, customizable)

Specification:

Master control	CPU	ARM 32 bit-cortex-M3 KernelMain frequency: 32MHz
Memory	128KB Flash16KB RAM4KB EEPROM
Hardware parameter	G-sensor	Gravity detection support 2g/4g/8g/ 16g
GPS	Precision:5m,support GPS and Beidou double-mode receiving positioning
Tamper switch	It is used to detect whether the case of the device is moved or opened
Power switch	Support physical buttons for power switch control
GPS antenna	1575.42MHz; Bandwidth;+_2MHz; Impedance: 500hm; Gain:2dBi, right circular polarization
LoRa antenna	Built-in LoRa antenna; Bandwidth;+_40MHz; Gain:1dBi; Standing-wave ratio(SWR)<=1.5; Impedance:500hm
Wireless parameter	Data rate	300bps-5.4kbs
Working frequency	EU868;US915; AS923
Protocol	LoRaWANTM; P2P
Maximum transmitted power	20dbm
Rx sensitivity	-140dBm
Electrical specification	Battery type	3.7V/2000mAh lithium battery(rechargeable)
Charging voltage& current	5V/1000Ma
Working temperature	-30℃- +80℃
Working humidity	10%-90%
DC specification	Power supply	Built-in li-polymer battery
Input voltage	DC3.7V
Sleep status current	<=20uA
Transmit status current	150mA
Physical parameter	IP grade	IP66
Dimension	111mm*65mm*33.5mm

Trouble shooting:

1. Device can’t join network?

Please check whether the device is powered on.

2. Device can’t be turn off?

Press the on/off button for about 4 seconds until the green indicator is off, and after that you’ll see that the green indicator will flash one time, that means the device is turn off

3. Device alarm is triggered?

The field environment is complex, which may cause the device alarm to be triggered accidentally, then you can increase the threshold value of acceleration sensor; On the contrary, if the device is not easy to trigger when it’s moved, you can decrease the threshold value of the acceleration sensor.

4. Problem of high packet loss rate?

Reconfigure the product and increase repetition of re-transmission
